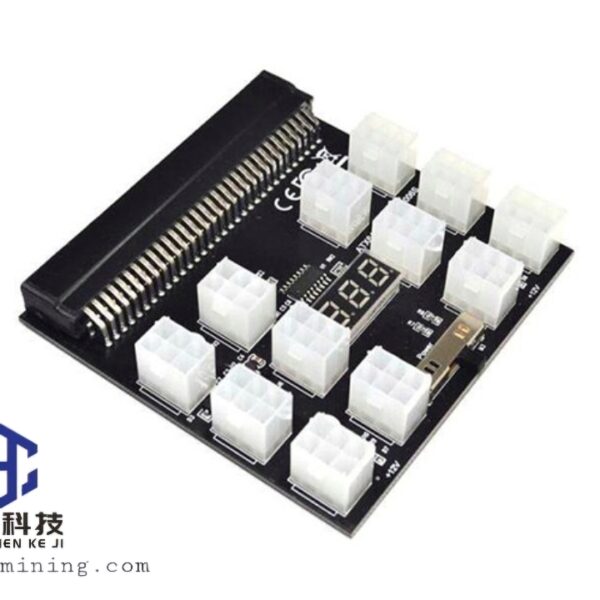

PCI-E 12*6Pin power adapter board

Description

PCI-E 12*6Pin Power Supply Breakout Board Adapter for Ethereum

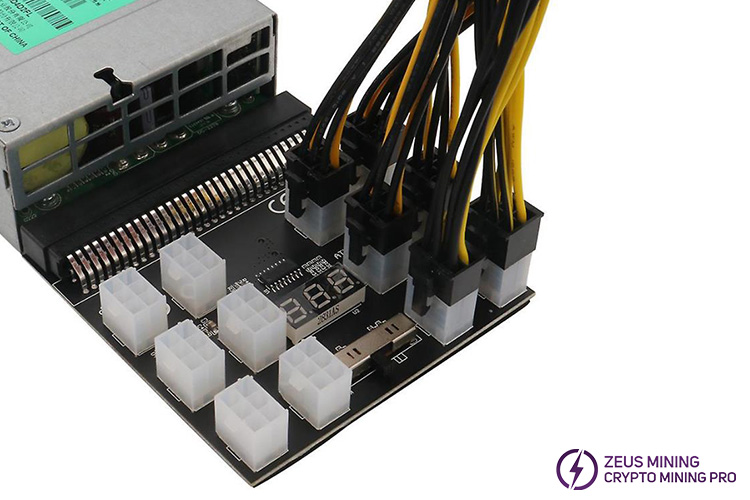

This PCI-E adapter board for power supply has solid capacitor filters that make the board can fit many kinds of server power. This 6pin server power supply board supports automatic start when power on, saving the trouble of manual start. Turn to left gear to make the board automatic start when power on. Turn to the right gear to make the board sync with the main power signal, then turn on or off synchronously. This power supply adapter board supports 1600 power and features 12*6pin outputs.

This power adapter circuit board is designed for servers and can be used in cryptocurrency mining applications, providing users with a stable, secure and simplified modular power system compatible with any standard graphics card on the market today.

Product details

1. Equipped with LED voltage display, can display the voltage of main power supply in real-time.

2. Floppy drive 4PIN is connected to the main power supply can be synchronized turn on/off.

3. Press the white button to turn on the power switch.

4. When the power cord is inserted, press the power switch, three-color LED flashes, and the LED display displays the voltage.

Specification:

Output Power: 12v

Interface: ATX 6PIN TAT BUS interface

Support System: Compatible with all WINDOWS systems, LINUX MAC

Applies to the common server power supply:

DPS-800GB A, DPS-1200FB A, DPS-1200QB A, PS-2751-5Q, PS-2751-LF-1F, HSTSN-PL12, DPS-700LB D, PS-2112-5L, DPS-750RB A.

Warm Tips:

1. When the floppy drive power cable is connected to the main power supply, the power switch is invalid, and the switch is switched on with the power supply.

2. The matching wire is customized, please do not insert any other cable.

3. When inserting the cable, we must recognize the direction, do not insert the reverse or insert partial position, prevent the burning of the equipment. When inserting the line, hold the socket of the equipment first and then insert the cable, so as to avoid damaging the pin when plugging in the socket.

In order to guarantee the safety of its installation, it is essential that the user does not exceed the nominal capacity of the power in which the installation of this adapter will be carried out, as well as the fact that the capacity of its power source is It will be affected by the environmental conditions under which you have your mining equipment(s) working, since the higher the ambient heat, the lower the dissipation capacity of the fan included in the power. Therefore, we recommend that you do not exceed the energy demand of your power by 75%, for example, if your source has a capacity of 1200w, do not extract more than 900 real watts from it.
