GPU miner fan governor

Description

GPU miner fan governor / Computer case fan governor / Graphics card fan speed controller

Graphics card fan governor is a fan speed controller for sequencing deployment of GPU Miner or computer server host.

Using an independent sensor chip, the fan speed can be precisely customized, suitable for 12V equipment.

The governor can supply power to 4 or 8 fans, and turning the potentiometer can adjust the speed of 4 or 8 fans at the same time.

The fan base supports 2P, 3P and 4P fans, and the speed of all 3 fans can be adjusted.

Installation method:

1. The rubber pad at the bottom of the governor can be glued and fixed on the chassis.

2. Drill holes on the chassis according to the size shown in the figure, and the potentiometer can be fixed in the holes of the chassis through nuts.

3. Set the screw column on the chassis according to the size of the fixing hole of the circuit board as shown in the figure, and fix the governor on the screw column.

Interface Type:

Power input and output: DC12V standard 6pin connector

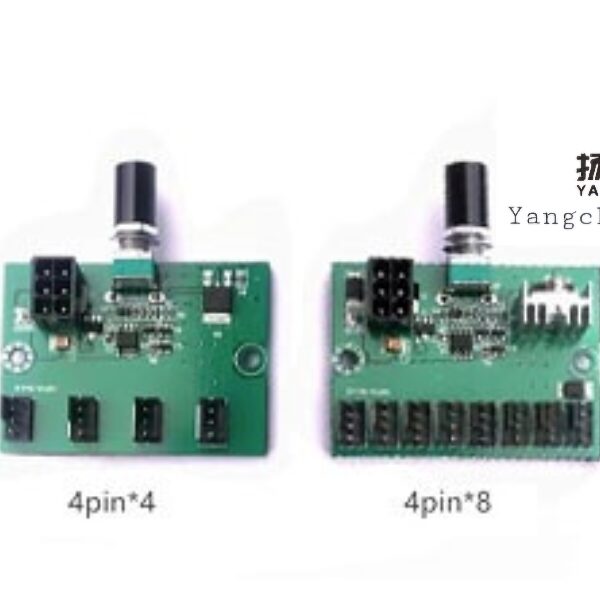

Fan output port: 4pin*4 or 4pin*8
