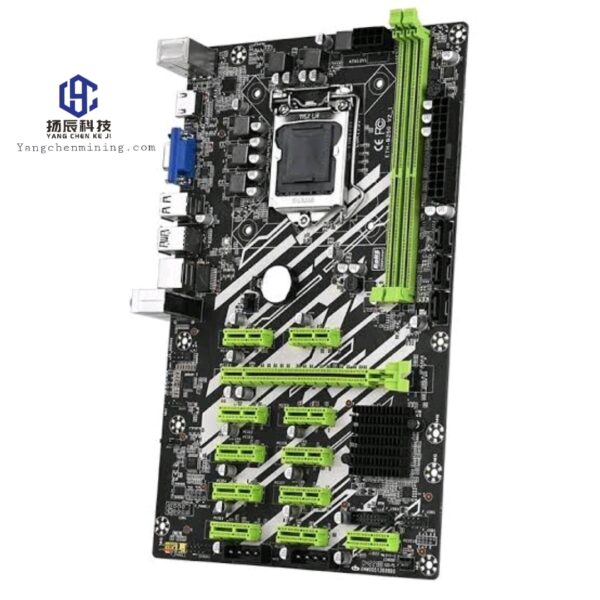

12PCI-E mining board B250

B250-BTC 12GPU Mining Motherboard B250 BTC graphics card motherboard adopts Intel B250 high-speed chipset, supports VGA, LGA 1151 series 6th and 7th generation processors. Equipped with 2 * DDR4 DIMM memory slots supports 2133 / 2400 / 2800 / 3000MHz memory, and supports up to 16GB. Fast startup, loading and file transfer, low power consumption, quiet, reliable and durable.

Specification:

Model: B250 BTC 12P

Processor: Support LGA 1151 series 6th and 7th generation processors.

Chipset: using Intel B250 high-speed chipset.

Memory: 2 * DDR4 DIMM memory slot.

Display chip: Integrated Intel HD graphics core graphics card.

Display output: VGA / DVI/ 1*PCI-E 16X / 11*PCI-E 1x.

Network: 1*RTL8105 100M Ethernet chip.

Storage: 4*SATA hard disk interface.

Audio: No sound card.

I/O interface:

2*USB3.0 interface, 4*USB2.0 interface, 1*DVI interface, 1*VGA port, 1*RJ45 network interface, 1*PS/2 interface.

Built-in I/O interface:

2*USB3.0 pin, 4*USB2.0 pin, 1*COM pin, 1*F-PANEL front panel function buttons and indicator pins.

BIOS: AMI 64Mb Flash ROM

Support system: Windows7/ 8.1/ 10

Cooling system: needs to be equipped with CPU radiator and fan

Power supply type: support ATX 24P + ATX 4P 12V + ATX 6P 12V power supply interface

Working temperature: -10℃-60℃

Working humidity: 5%-95% relative humidity, non-condensing

Motherboard size: 190mm * 285mm

CPU: not included
